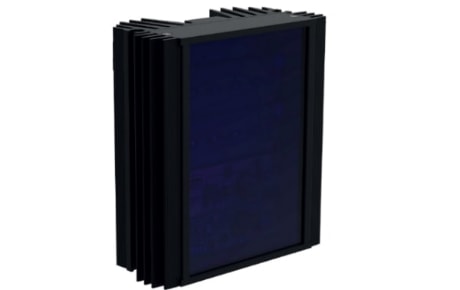

Velocity Infrared Illuminators VIR-294-L

Supply voltage 12...24 V AC/DC
Power consumption 27.0 W
Built-in photocell yes
Pressure equalization valve yes
Ingress protection IP67, IK10
Operation temperature -40...+50 °C
Weight 1.7 kg
Description
Wavelenght, nm Angle, ° Distance, m Horizontal spot size,
10 240 42
15 155 40
30 81 42
850 45 55 42
60 40 40
90 28 40
120 21 36
  10 110 19
15 65 17
30 38 20
940 45 24 19
60 19 19
90 14 20
  120 10 17
