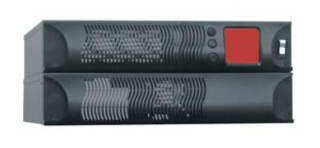

Velocity Uninterruptible Power Supply VRU2200
Description
Description
| Model | VRU2200 | ||||||||
| Topology | True On – Line, Double Conversion | ||||||||
| On-Battery Output Waveform | True Sine Wave | ||||||||
| Number of Phase | Single (1µ2W + G) | ||||||||
| Input | |||||||||
| Maximum Capacity (VA /W) | 2200 VA/1540 W | ||||||||
| Nominal Input Voltage | 120 V | ||||||||
| Input Voltage Regulation | 80 to 138 VAC | ||||||||
| Nominal Input Frequency | 50 / 60 Hz +/- 5Hz | ||||||||
| Input PFC | >0.98 @ full load | ||||||||
| Input Short Protection | Circuit Breaker | ||||||||
| Output | |||||||||
| Nominal Output Voltage | 100/110/115/120 VAC | ||||||||
| Output Voltage Regulation | Rated Voltage +/- 2% | ||||||||
| Output THD | <3%@Linear Load | ||||||||
| High Efficiency Mode (AC to AC) | >88% | ||||||||
| Crest Factor | 3:01 | ||||||||
| Start on Battery | Yes | ||||||||
| Output Frequency | 50 / 60 Hz (Autotracking) | ||||||||
| Overload Capability | Sustaining 50 sec@108% load: 28 sec@110-120% load ; 15 sec @120 – 130% load | ||||||||
| 9 sec@140-145% load; Immediate Response@150% load | |||||||||
| Battery | |||||||||
| User Replaceable Battery | 96V(2x48 VDC Battery Pack) | ||||||||
| Typical Backup Time (Full/Half Load) | 8 /20 minutes | ||||||||
| Battery Type | Sealed VRLA 12V7AH; Hot Swap | ||||||||
| Recharge Time to 90% | 8 hours | ||||||||
| Extended Battery Cabinet | Extendible Battery Module in 2U High (Comprises 2 x 48VDC Battery Packs | ||||||||
| Advance Warning Diagnostics | |||||||||
| Front Panel Indication | Front Panel menu driven LCD Monitoring and control panel for all functions | ||||||||
| Audible Alarms | DC Mode, Low Battery, Voltage / Frequency Error, Charger Fail. | ||||||||
| High Temp, Over Load, Fault, PFC Overload | |||||||||
| Communication Interface | |||||||||
| Communication Port | RS-232 Port (Standard) : DB9, AS400 , USB Cards (optional) | ||||||||
| SNMP Manageable | Yes | ||||||||
| Environmental | |||||||||
| Operation Temperature | 0-40°c (32-104F) | ||||||||
| Storage Temperature | -15-40°c (5-122F) | ||||||||
| Relative Humidity | 0% to 95% non-condensing | ||||||||
| Audible Noise (at 1 meter from surface of unit) | |||||||||
| Mechanical | |||||||||
| Dimensions-Rackmount (W x H x D mm) | 426 x 176.8 (4U) x 545 mm | ||||||||
| Dimensions -Tower (W x H x D mm) | 176.8 x 426 x 545 mm | ||||||||
| Weight (UPS / Battery Banks) | 14.5 / 32.5 kg | ||||||||
| Total Weight | 47 kg | ||||||||
| Conformance | |||||||||
| EMI / RFI Compatibility | FCC Class A | ||||||||
| Safety Certifications | UL |
||||||||
