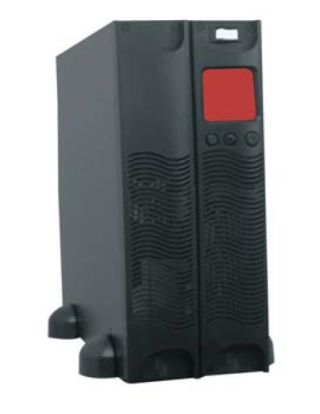

Velocity Uninterruptible Power Supply VRU2500
Description
Description
| Model | VRU2500 |
| Topology | True On – Line, Double Conversion |
| On-Battery Output Waveform | True Sine Wave |
| Number of Phase | Single (1µ2W + G) |
| Input | |
| Maximum Capacity (VA /W) | 2500 VA/1750 W |
| Nominal Input Voltage | 230 V |
| Input Voltage Regulation | 160 to 276 VAC |
| Nominal Input Frequency | 50 / 60 Hz +/- 5Hz |
| Input PFC | >0.98 @ full load |
| Input Short Protection | Circuit Breaker |
| Output | |
| Nominal Output Voltage | 208/220/230/240 VAC |
| Output Voltage Regulation | Rated Voltage +/- 2% |
| Output THD | <3%@Linear Load |
| High Efficiency Mode (AC to AC) | >88% |
| Crest Factor | 3:01 |
| Start on Battery | Yes |
| Output Frequency | 50 / 60 Hz (Autotracking) |
| Overload Capability | Sustaining 50 sec@108% load: 28 sec@110-120% load ; 15 sec @120 – 130% load; 9 sec@140-145% load; Immediate Response@150% load |
| Battery | |
| User Replaceable Battery | 96V (2x48 VDC Battery Pack) |
| Typical Backup Time (Full/Half Load) | 8/20 minutes |
| Battery Type | Sealed VRLA 12V7AH; Hot Swap |
| Recharge Time to 90% | 8 hours |
| Extended Battery Cabinet | Extendible Battery Module in 2U High (Comprises 2 x 48VDC Battery Packs |
| Advance Warning Diagnostics | |
| Front Panel Indication | Front Panel menu driven LCD Monitoring and control panel for all functions |
| Audible Alarms | DC Mode, Low Battery, Voltage / Frequency Error, Charger Fail, High Temp, Over Load, Fault, PFC Overload |
| Communication Interface | |
| Communication Port | RS-232 Port (Standard) : DB9, AS400 , USB Cards (optional) |
| SNMP Manageable | Yes |
| Environmental | |
| Operation Temperature | 0-40°c (32-104F) |
| Storage Temperature | -B4415-40°c (5-122F) |
| Relative Humidity | 0% to 95% non-condensing |
| Audible Noise (at 1 meter from surface of unit) | |
| Mechanical | |
| Dimensions-Rackmount (W x H x D mm) | 426 x 176.8(4U) x 545 mm |
| Dimensions -Tower (W x H x D mm) | 176.8 x 426 x 545 mm |
| Weight (UPS / Battery Banks) | 13.5 / 32.5 kg |
| Total Weight | 46 kg |
| Conformance | |
| EMI / RFI Compatibility | EN50091-2 Class B, EN55022B |
| Safety Certifications | CE,TUV/GS |
