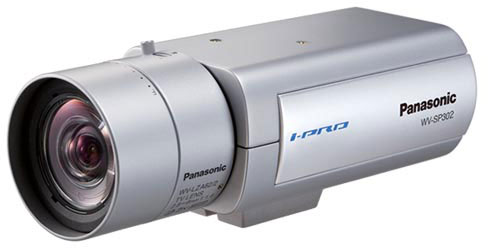

Panasonic Network Box Cameras WV-SP302

IP Camera with Power over Ethernet capabilities
VGA / 800x600 H.264 Network Camera
Panasonic
Description
  • Progressive scan 1.3 Megapixel MOS Sensor, Up to 30 fps at 800 x 600 image size
  • Wide Dynamic Range and ABS (Adaptive Black Stretch) technologies deliver wider dynamic range compared to conventional cameras.
  • Face Wide Dynamic Range technology ensures clear face Image.
  • Face Wide Dynamic Range technology ensures clear face Image.
  • High sensitivity: 0.2 lux (Colour), 0.13 lux(B/W) at F1.4 / 0.013 lux (Colour), 0.009 lux (B/W) at F1.4 with Sens Up 16x
  • Power over Ethernet (PoE) IEEE 802.3af

The WV-SP302 H.264 Network Camera uses a high sensitivity 1.3 Megapixel MOS Sensor, and allows multiple H.264 (High Profile) streams to ensure simultaneous real time monitoring and high resolution recording via “UniPhier”, Panasonic’s proprietary System LSI platform.

Full frame (up to 30fps) transmission is available at VGA or 800x600 images sizes, with 16:9 aspect ratio H.264 streams available up to 640x360 resolution.

Optimum image quality is assured through the use of advanced technologies such as Face Wide Dynamic Range for clear face images, and Adaptive Black Stretch (ABS) to deliver wider dynamic range than conventional camera. The 3D-DNR Digital Noise Reduction system ensures noise reduction in a variety of environmental conditions, while progressive scan ensure clear images by minimising motion blur, even with moving subjects.

A simple browser control interface gives the user simple access to zoom controls, alarm notifications and simple image transfer.

Setup and configuration is made as simple as possible through the use of focus assist, and a simple multi-language GUI and setup menu, along with an analogue monitor output for easy installation.
