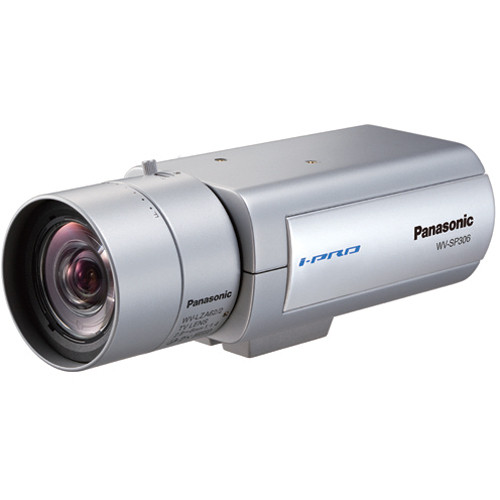

Panasonic Network Box Cameras WV-SP306

HD IP Camera
HD H.264 True Day/Night Network Camera with Auto Back Focus
Panasonic
Description
  • Progressive scan 1.3 Megapixel MOS Sensor. Up to 30 fps at 1,280 x 960 image size
  • Wide Dynamic Range and ABS (Adaptive Black Stretch) technologies deliver wider dynamic range compared with conventional cameras.
  • Face Wide Dynamic Range technology ensures clear face Image.
  • High sensitivity: 0.3 lux (Colour), 0.05 lux(B/W) at F1.4 / 0.019 lux (Colour), 0.003 lux (B/W) at F1.4 with Sens Up 16x
  • H.264 (High profile) and JPEG dual stream output.
  • Power over Ethernet (PoE) IEEE 802.3af

The WV-SP306 HD H.264 Network Camera uses a high sensitivity 1.3 Megapixel MOS Sensor, allowing day / night function down to 0.3 lux (colour) or 0.05lux (monochrome) at F1.4, with Auto Back Focus for easy installation and stable focus in both colour and monochrome modes.

The WV-SP306 allows multiple H.264 (High Profile) streams to ensure simultaneous real time monitoring and high resolution recording via “UniPhier”, Panasonic’s proprietary System LSI platform.

Full frame (up to 30fps) transmission is available at 1280x960 images sizes, with 16:9 aspect ratio H.264 streams available at up to 720 / 30p resolution.

Optimum image quality is assured through the use of advanced technologies such as Face Wide Dynamic Range for clear face images, and Adaptive Black Stretch (ABS) to deliver wider dynamic range than conventional camera. The 3D-DNR Digital Noise Reduction system ensures noise reduction in a variety of environmental conditions, while progressive scan ensures clear images by minimising motion blur, even with moving subjects.

A simple browser control interface gives the user easy access to zoom controls, alarm notifications and image transfer.

Setup and configuration is made as effortless as possible through the use of focus assist, and a simple multi-language GUI and setup menu, along with an analogue monitor output for easy installation.
