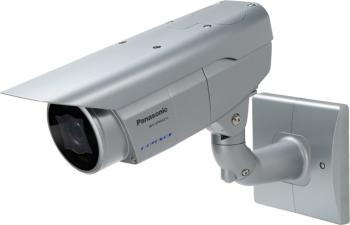

Panasonic Network Box Cameras WV-SPW631L

Full HD / 1,920 x 1,080 60 fps H.264 Weatherproof Network Camera featuring Super Dynamic
Description 1080p Full HD / 720p HD images up to 60 fps*1
Approximate 1/2.8 inches, high sensitivity MOS image sensor
Super high resolution at Full HD / 1,920 x 1,080 created by high sensitivity MOS Sensor.
Multiple H.264 (High profile) streams (max. 4 streams) and JPEG streams ensure simultaneous real time monitoring and high resolution recording by new enhanced "UniPhier®", Panasonic's proprietary System LSI platform.
Maximum Screen Size is 2,048 x 1,536* @30 fps, H.264
* Used by super resolution techniques


Enhanced Super Dynamic*1 and ABS (Adaptive Black Stretch) technologies deliver 133 dB wider dynamic range compared to conventional cameras.
Multi process NR & 3D-DNR ensures noise reduction in various conditions.
High sensitivity with Day & Night (IR) function : 0.04 lx (Color), 0.01 lx (B/W) at F1.3
IR LED equipped : The equipped infrared LED makes it possible to take pictures at zero lx.
IR LED is controlled to match the environment, thereby the camera provides clear images of human faces without white blur.
High Speed ABF (Auto Back Focus) and Motorized Zoom ensures easy installation.
Newly developed lens with aperture control function realizes the best focus in any environment.

VIQS (Variable Image Quality on Specified area) technology allows the designated eight areas to retain higher image quality while the excluded area will have a decreased image quality, which enables to use lower image file size and bit rate.

Cropping function enables to provide whole image and the part image simultaneously. Up to 4 image capture areas can be specified, and it is also possible to control the sequence.
Face Super Dynamic technology ensures clear face image.
Lens distortion compensation for the distorted images can be adjusted 256 steps.
Electronic sensitivity enhancement : Auto (Up to 16/30s) / OFF
Selectable light control modes :


Outdoor scene,Indoor scene (50 Hz) / Indoor scene (60 Hz),Fix shutter
Indoor scene (50 Hz/60 Hz) : Flicker caused by fluorescent lightning will be automatically compensated.
3x extra optical zoom at 640 x 360 resolution
2x, 4x digital zoom controlled by browser
VMD (Video Motion Detection) with 4 programmable detection areas, 15 steps sensitivity level and 10 steps detection size
Privacy Zone can mask up to 8 private areas, such as house windows and entrances/exits.
Camera title display : Up to 20 alphanumeric characters on the browser
Alarm sources including 3 terminal input, VMD and Panasonic alarm command can trigger actions such as SDXC/SDHC/SD memory recording,

FTP image transfer, E-mail notification, Indication on browser, Alarm terminal output, and Panasonic alarm protocol output.
Full duplex bi-directional audio allows interactive communication between camera site and monitoring site.
JPEG Image compression ratio can be changed by alarm so that higher quality image can be provided.
Prioritized stream control : One of the video streams can be prioritized when multiple recorders or client PCs are accessing the camera so that the recorder or the client PC can maintain the frame rate.
Double SDXC/SDHC/SD Memory card slots for manual recording (H.264 / JPEG), alarm recording (H.264 / JPEG) and backup upon network failure (H.264 / JPEG). Realize long-term recording and auto backup function.
Face detection function detects the position of human face and the information is sent by XML or video stream. (Extension Software)
Can be added new intelligent extension software in addition to built-in VMD (Video Motion Detection), alarm function.
Fog compensation function equipped as standard.
Super Chroma Compensation function realizes a better color reproducibility even in low illumination.
H.264 max. bit rate/client and Total bit rate control allows flexible network traffic management. Frame rate priority mode controls bit rate and compression ratio to provide the specified frame rate.
Internet mode : H.264 images can be transmitted over HTTP protocol.
Multi-language : English / Italian / French / German / Spanish / Portuguese / Russian / Chinese / Japanese
IPv4/IPv6 protocol supported
Supports SSL, DDNS (viewnetcam, RFC2136)
Still images (JPEG) can be viewed on mobile phones via Internet.
Onvif compliant model
IP66 rated water and dust resistant. Compatible with IEC60529 measurement standard,Type 4X(UL50), NEMA 4X compliant.
Dehumidification device for use with various weather conditions
